Charging and Locking

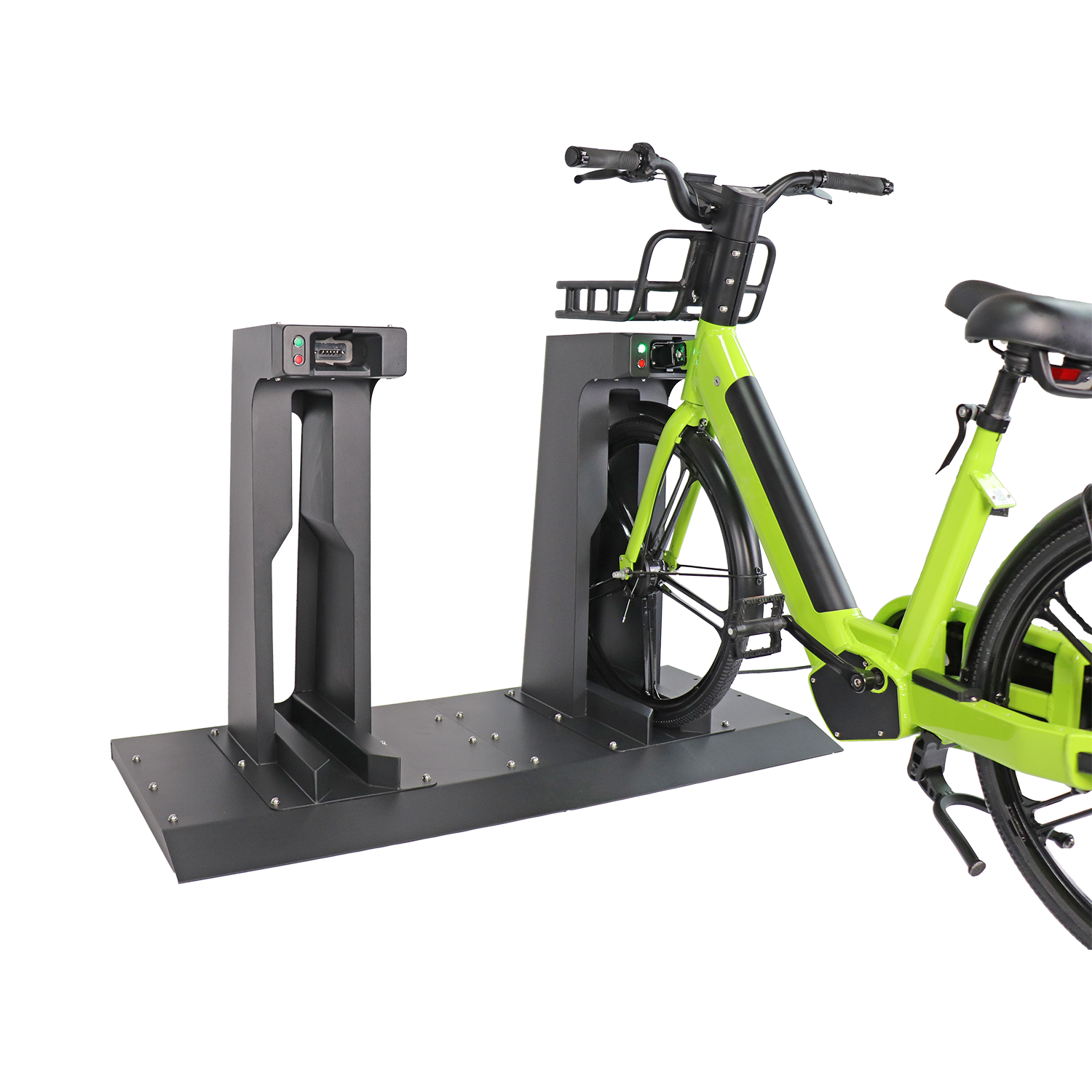

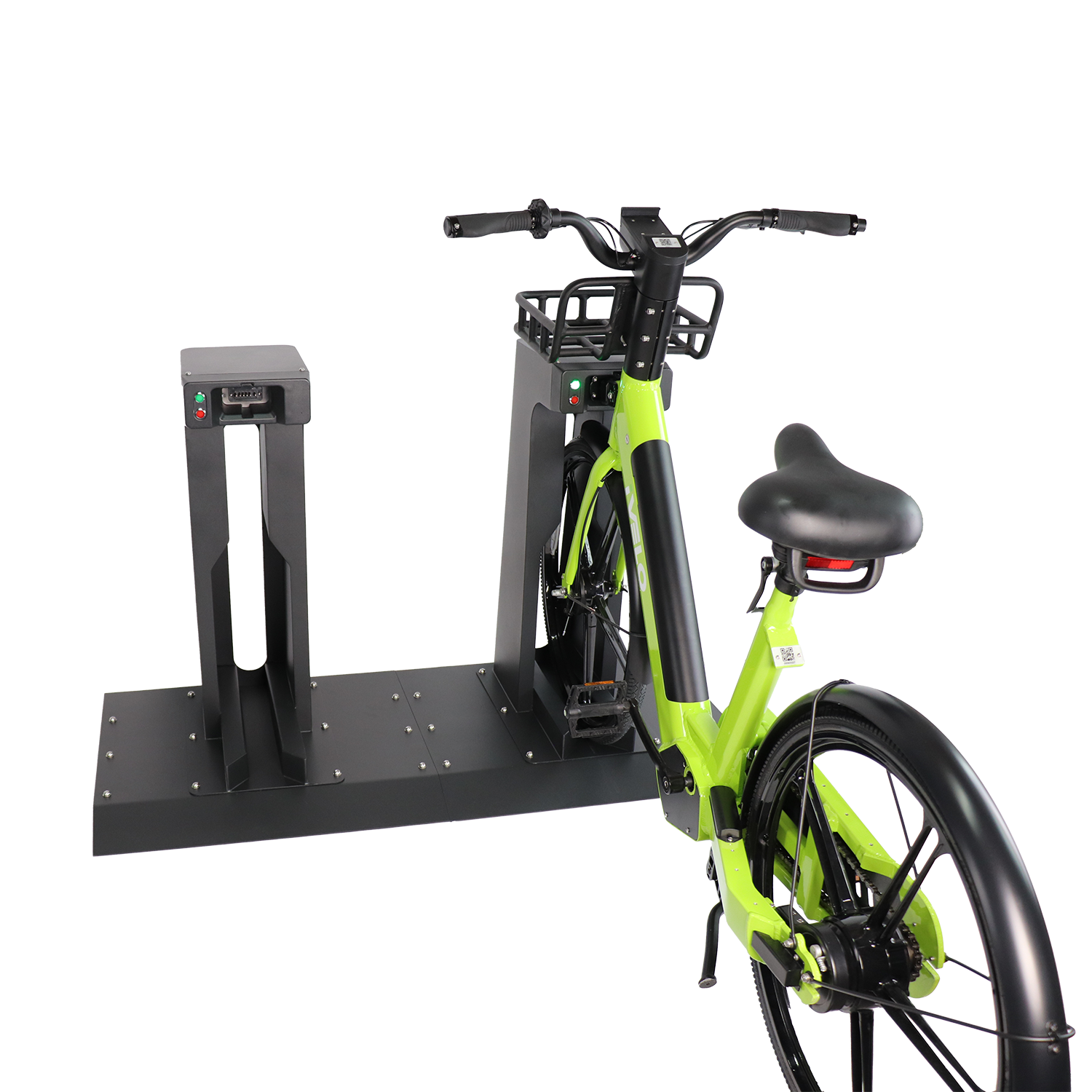

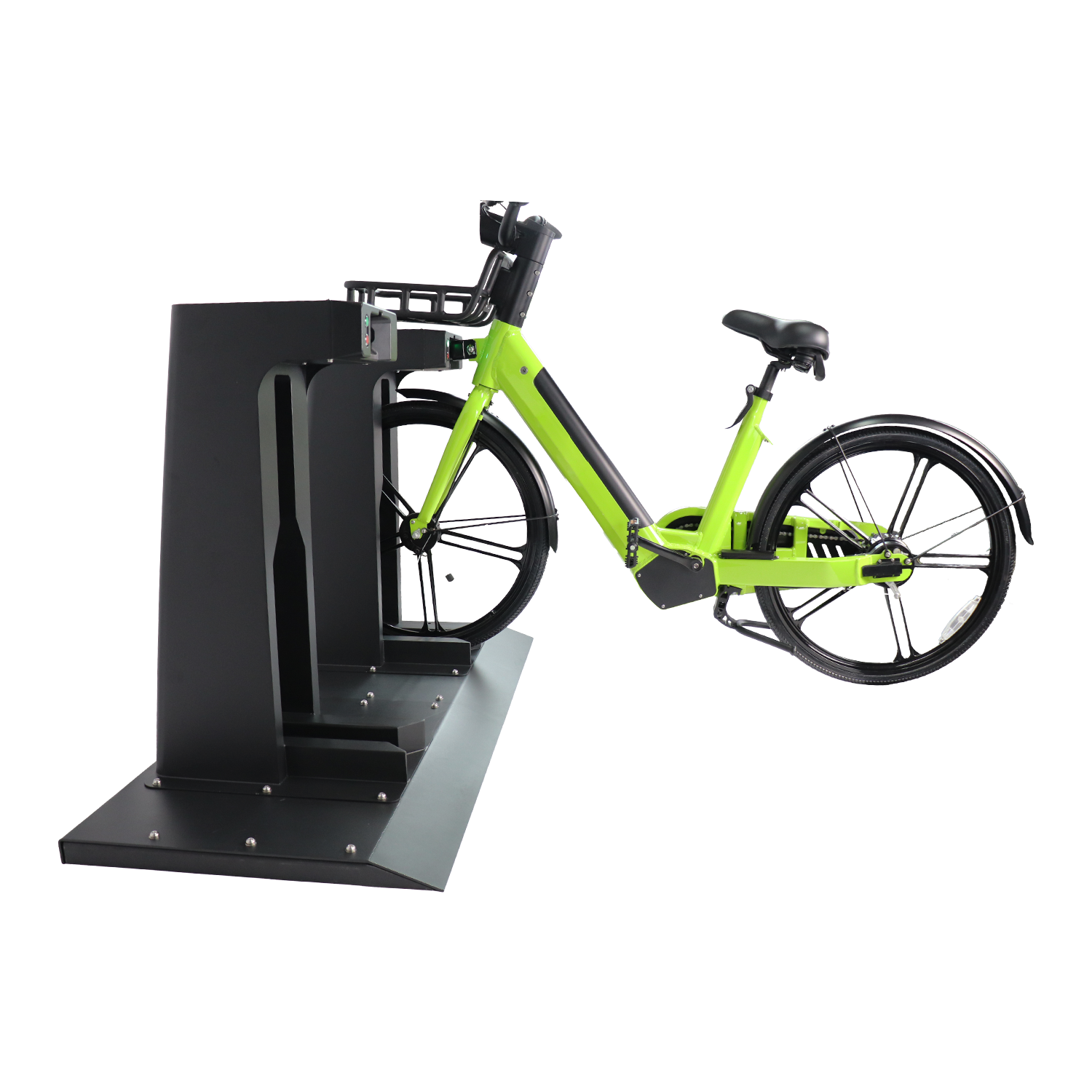

The built-in smart electronic lock detects the vehicle through magnetic sensing and automatically secures it upon docking, while the charging station(with an integrated charger) automatically charges the electric scooter or e-bike.
Working Principle
-Unlocking & Billing Start
After scanning the QR code(Vehicle-side), the scooter or e-bike is automatically unlocked from the charging station. The user can then simply pull the vehicle out without additional steps.
-Docking & Billing End
Upon docking, the charging station automatically detects the vehicle, lock it, initiates charging, and ends the billing without needing separate commands from the backend.
-Charge Management
•The male pins (station side) physically engage with the female terminal(vehicle side) to establish power transfer. Charging begins immediately upon mechanical connection, requiring no IoT handshake.
•The charging station will automatically stop charging once the battery isfully charged. However, due to the real-time power consumption of theIoT system, it continuously monitors the battery level and will resumecharging if it drops below 85%.
