26 INCH MAGNESIUM ALLOY 250W/350W ELECTRIC BIKE BRUSHLESS HUB MOTOR MT70

Designed for e-City and e-Mountain Bikes.
Rated motor power 250W/350W.
Magnesium Alloy Cast Wheel.

Additional information

Description

Introducing our Rear-Drive Gear Motor, a perfect addition to your city or mountain bike. Equipped with a 26-inch magnesium alloy cast wheel, it combines lightweight construction with a stylish design.

Choose between 250W or 350W motor power options, ensuring a balance of strength and efficiency. This motor is compatible with both disc brakes and freewheels, offering enhanced control and versatility. With a rear drop-out of 135mm, installation is a breeze on various bike frames. Featuring a reduction ratio of 1:4.4, this motor optimizes power transmission, providing a smooth and enjoyable riding experience.

Upgrade your bike today with our Rear-Drive Gear Motor, and enjoy the perfect blend of style, strength, and efficiency.

Specification

Core Data
Position: Rear Motor Wheel and Front Normal Wheel

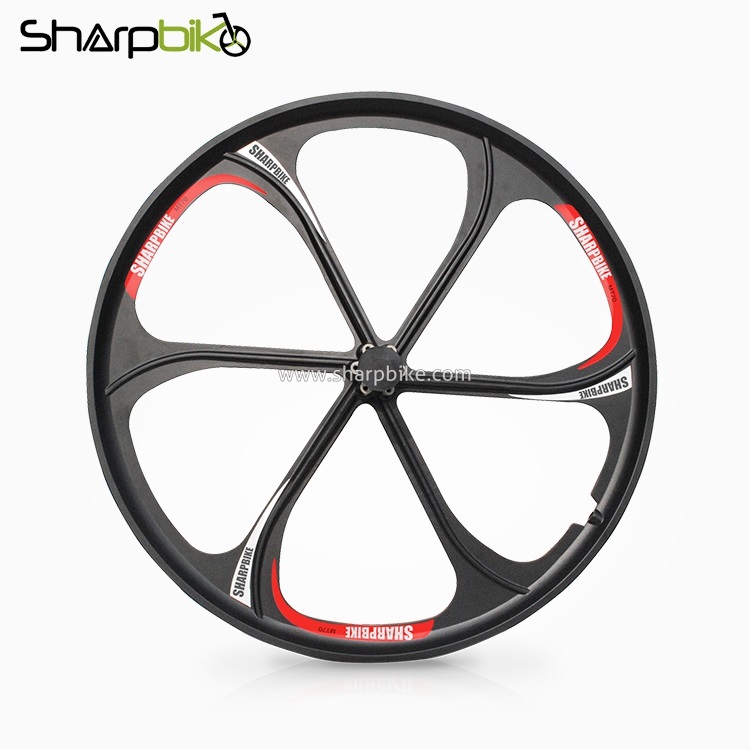

Wheel Diameter (Inch): 26″ Magnesium Alloy Wheel
Construction: Gear Drive
Rated Voltage (DCV): 36/48V
Rated Power (W): 250W/350W
Reduction Ratio: 1:4.4
Rated Efficiency: ≥82%
Max Torque (Nm.): 35/39Nm.
Surface Color: White/Black
Weight(Kg): 5Kg
Noise Grade (dB): ≤55dB
Operating Temperature (℃): -20-45
Hall Sensor: Optional
Integrate speed sensor: Optional

Mounting Parameters
Brake Type: Disc Brake/V brake
Installation Widths (mm / OLD): 135
Cabling Route: Shaft Center Right/Left
Freewheel: 6-9S

Tests & Certifications
Salt fog test(h): 24/96
Waterproof Grade: IP54
Certifications: CE
