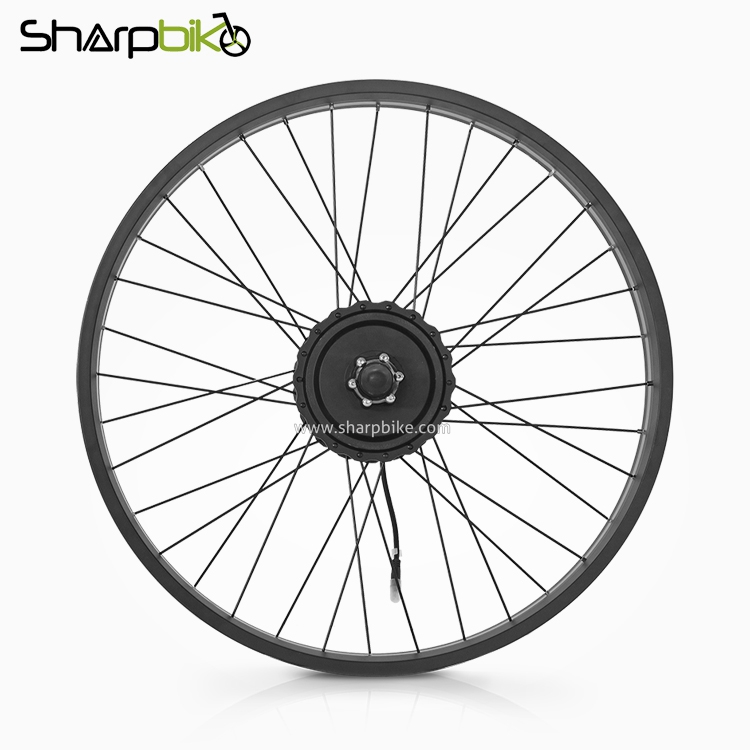

36V/48V FAT TYRE ELECTRIC BIKE REAR MOTOR MTF03H

Designed for e-Fat bikes.
With a max torque of 90Nm and 1000W rated power output.

Additional information

Description

MTF03H Rear-Drive Motor, designed to elevate the performance of your fat tire electric bike. With its lightweight and stylish design, this motor is both functional and visually appealing. It features 36 spoke holes, ensuring a strong and reliable connection to your wheel.

Experience the power and versatility of our motor, with motor power options of up to 1000W. With a maximum torque of 90N.m, it delivers impressive strength for conquering challenging terrains with ease. MTF03H is built to be strong and efficient, providing a smooth and exhilarating riding experience.

Enjoy enhanced control and braking performance with the motor’s compatibility with both disc brakes and freewheels. Whether you need precise stopping power or prefer the flexibility of freewheeling, our motor accommodates your riding style.

Installation is a breeze with rear drop-out options of 175mm or 190mm, providing versatility for different bike frames. The reduction ratio of 1:5 optimizes power transfer, ensuring efficient performance and a thrilling ride.

Specification

Core Data
Position: Rear Motor
Wheel Diameter (Inch): 16″-28″
Construction: Gear Drive
Rated Voltage (DCV): 36/48V
Rated Power (W): 350W-1000W
Reduction Ratio: 1:5
Rated Efficiency: ≥82%
Max Torque (Nm.): 90Nm.
Surface Color: Silver/Black
Weight(Kg): 4.2-4.5Kg
Noise Grade (dB): ≤55dB
Operating Temperature (℃): -20-45
Hall Sensor: Optional
Integrate speed sensor: Optional

Mounting Parameters
Brake Type: Disc Brake/V brake
Installation Widths (mm / OLD): 175/190mm
Cabling Route: Shaft Center Right/Lateral
Freewheel: 6-7S(Thread) / 8-9S(Cassette)
Spoke Hole: 36H
Spoke Specification: 12g/13g

Tests & Certifications
Salt fog test(h): 24/96
Waterproof Grade: IP54
Certifications: CE
