20 INCH BRUSHLESS GEAR HUB MOTOR WHEEL FOR BEACH CRUISER 52V 1500W

Designed for 20 Inch e-Fat bikes.
With a max torque of 90Nm and 1000W rated power output

Additional information

Description



Introducing the MTF04V motor, an upgraded version of the popular MTF04 model. This new motor not only boasts a sleek and redesigned appearance but also offers enhanced performance for an exceptional e-bike experience.

With a power rating increased to 1500 watts, the MTF04V motor delivers more power and torque, taking your e-bike rides to new heights. Feel the exhilaration as you experience its rated motor power of up to 1500W and a maximum speed of 55km/h. The optimized reduction ratio of 1:5.2 ensures efficient power transfer, resulting in seamless and enjoyable rides.

Conquer steep hills and challenging terrains effortlessly with the MTF04V motor’s maximum torque of 98N.m. Its strong and efficient gear motor design guarantees reliable and consistent performance, allowing you to push your e-bike to its limits.

The gear drive construction allows the motor to be more efficient and consume less power. You can confidently explore without worrying about running out of power. The rear wheel drop-out options of 175mm or 190mm ensure easy installation and compatibility with most fat tire electric bikes available on the market.

Upgrade your e-bike with the MTF04V motor and unlock a new level of power, performance, and reliability. Embrace the excitement of electric biking and enjoy the freedom to explore with confidence and ease.



Specification

Core Data
Position: Rear Motor Wheel and Front Normal Wheel

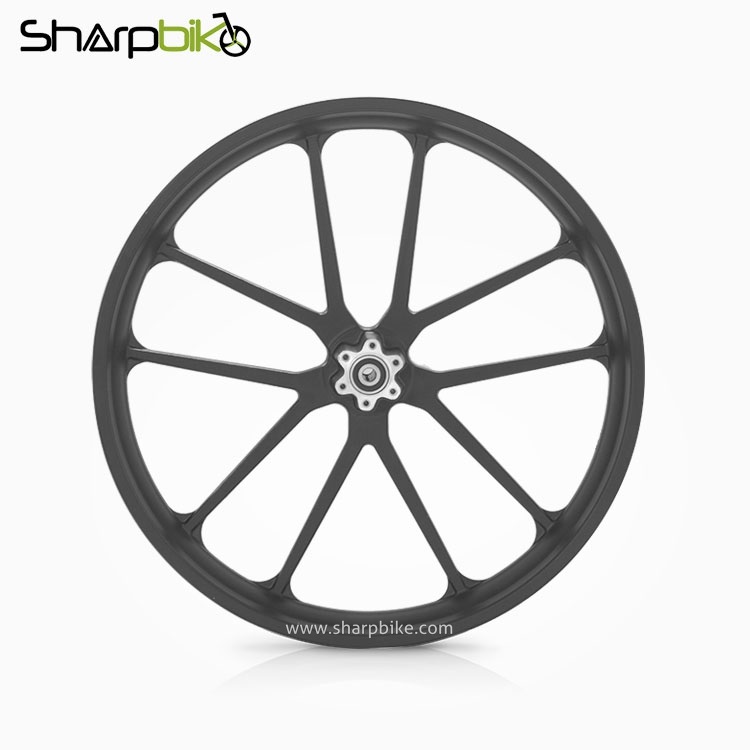

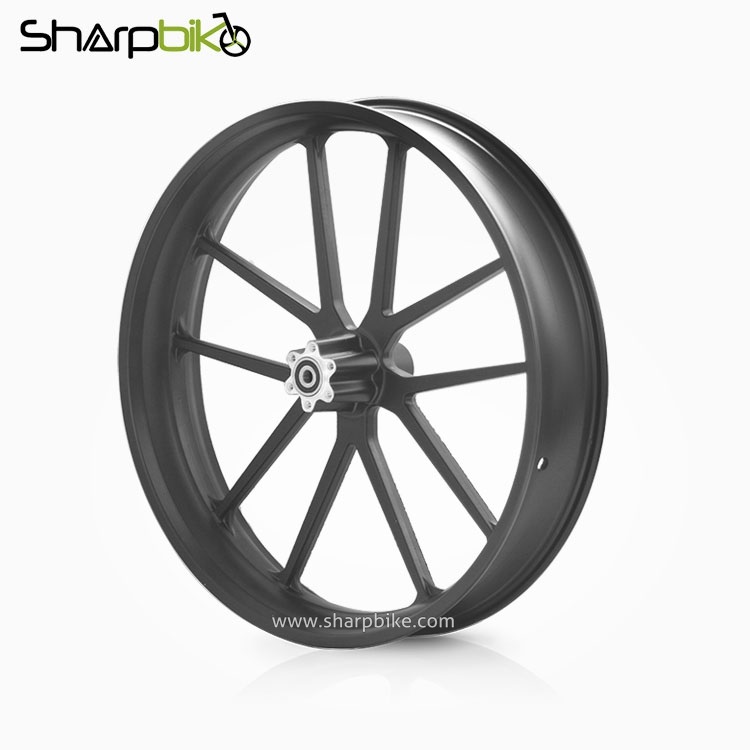

Wheel Diameter (Inch): 20″ Aluminium Alloy Wheel
Construction: Gear Drive
Rated Voltage (DCV): 52v
Rated Power (W): 1500W
Reduction Ratio: 1:5
Rated Efficiency: ≥82%
Max Torque (Nm.): 98Nm.
Surface Color: White/Black/Customerized
Weight(Kg): 8Kg
Noise Grade (dB): ≤55dB
Operating Temperature (℃): -20-45
With Hall Sensor: Yes
With Integrate speed sensor: Yes

Mounting Parameters
Brake Type: Disc Brake/V brake

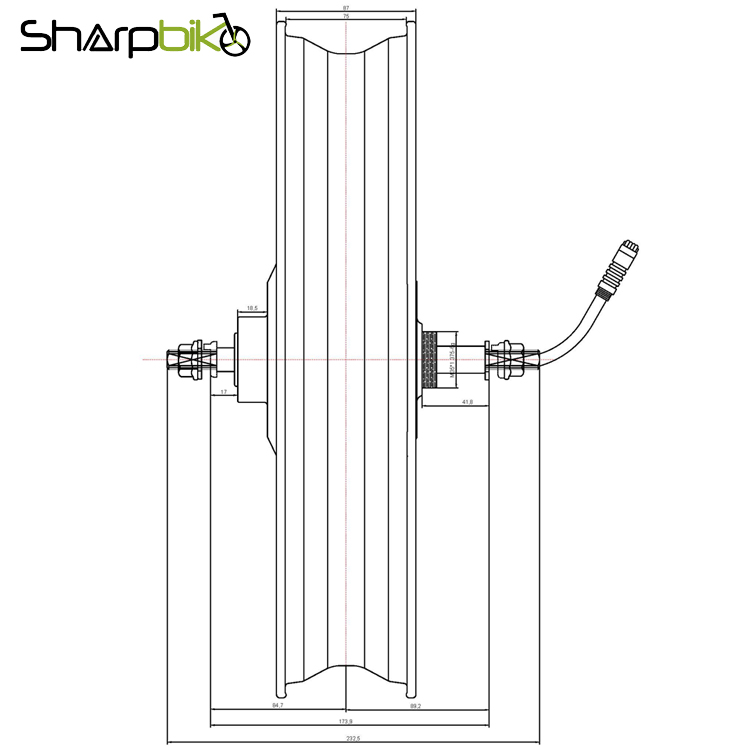

Installation Widths (mm / OLD): 135mm (Front); 175/190mm (Rear)
Cabling Route: Shaft Center, Right/Shaft Side, Left
Freewheel: 6-9S

Tests & Certifications
Salt fog test(h): 24/96
Waterproof Grade: IP54
Certifications: CE
